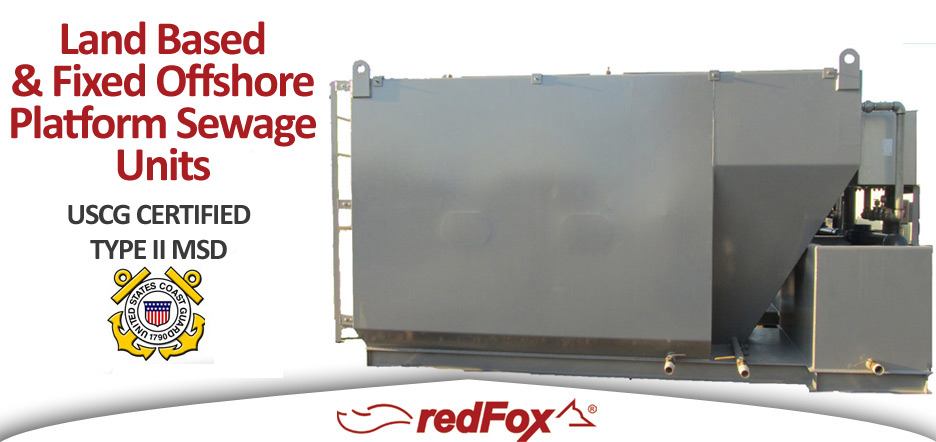

LAND BASED sewage units




Three Chamber Process

Aeration: Supports naturally occurring bacteria that eliminates the waste.
Clarification: Causes the separation of the bacteria sludge from the treated water.
Disinfection: Eliminates the presence of any living bacteria before discharge of the effluent into the environment.





redFox Model Offshore Platforms Persons / Black Water Persons / Black & Gray Water
RF-200-C 10 4
RF-350-C 18 7
RF-500-C 25 10
RF-750-C 38 15
RF-1000-C 50 20
RF-1500-C 75 30
RF-2000-C 100 40
RF-2500-C 125 50
RF-3000-C 150 60
RF-3500-C 175 70
RF-4000-C 200 80
RF-4500-C 225 90
RF-5000-C 250 100
RF-5500-C 275 110
RF-6000-C 300 120
RF-6500-C 325 130
RF-7000-C 350 140
RF-7500-C 375 150
RF-9000-C 450 180
RF-12000-C 600 240




redFox Model Land Applications Persons / Black Water Persons / Black & Gray Water
RF-200-C 6 3
RF-350-C 10 5
RF-500-C 15 8
RF-750-C 22 11
RF-1000-C 29 15
RF-1500-C 44 22
RF-2000-C 58 29
RF-2500-C 73 36
RF-3000-C 87 43
RF-3500-C 100 50
RF-4000-C 116 58
RF-4500-C 129 65
RF-5000-C 143 72
RF-5500-C 157 79
RF-6000-C 172 86
RF-6500-C 186 93
RF-7000-C 200 100
RF-7500-C 214 107
RF-9000-C 257 126
RF-12000-C 343 172
RF-15000-C 500 215
RF-20000-C 666 287

*Designed to meet typical land discharge applications, your discharge limit may vary, please call redFox for sizing requirements. Larger models available.

Applications:

- Facilities Fixed & Temporary

- Fixed Offshore - Inshore Platforms

- Remote Locations

The Conventional Series Sewage Unit is specifically designed for fixed offshore platforms and land based installations.  Using the extended aeration process the unit is portable and easy to install and operate.  The structure and components of the redFox units are built for a 20-year service life in the harshest conditions.  Some of the first units we ever built are still in operation today.

Standard Marine Sanitation Device offers these benefits:

  • - Capacity: 100 to 20,000 GPD.

  • - From 2 to 666 Persons

  • - USCG Certified Sewage Treatment Systems.

  • - Offered in standard configuration or customized to meet our customers specifications and space limitations.

  • - Low maintenance time and Operational Costs - Very few moving parts and requirements for maintenance. If maintenance or repairs become necessary, no special tools are required.

  • - Low power/utility consumption.

  • - No odor.

  • - Utilizes common household bleach for disinfection.

  • - Reasonably priced.

  • - Operates with fresh or saltwater.

*Designed to meet typical land discharge applications, your discharge limit may vary, please call redFox for sizing requirements. Larger models available.
